Xyrion

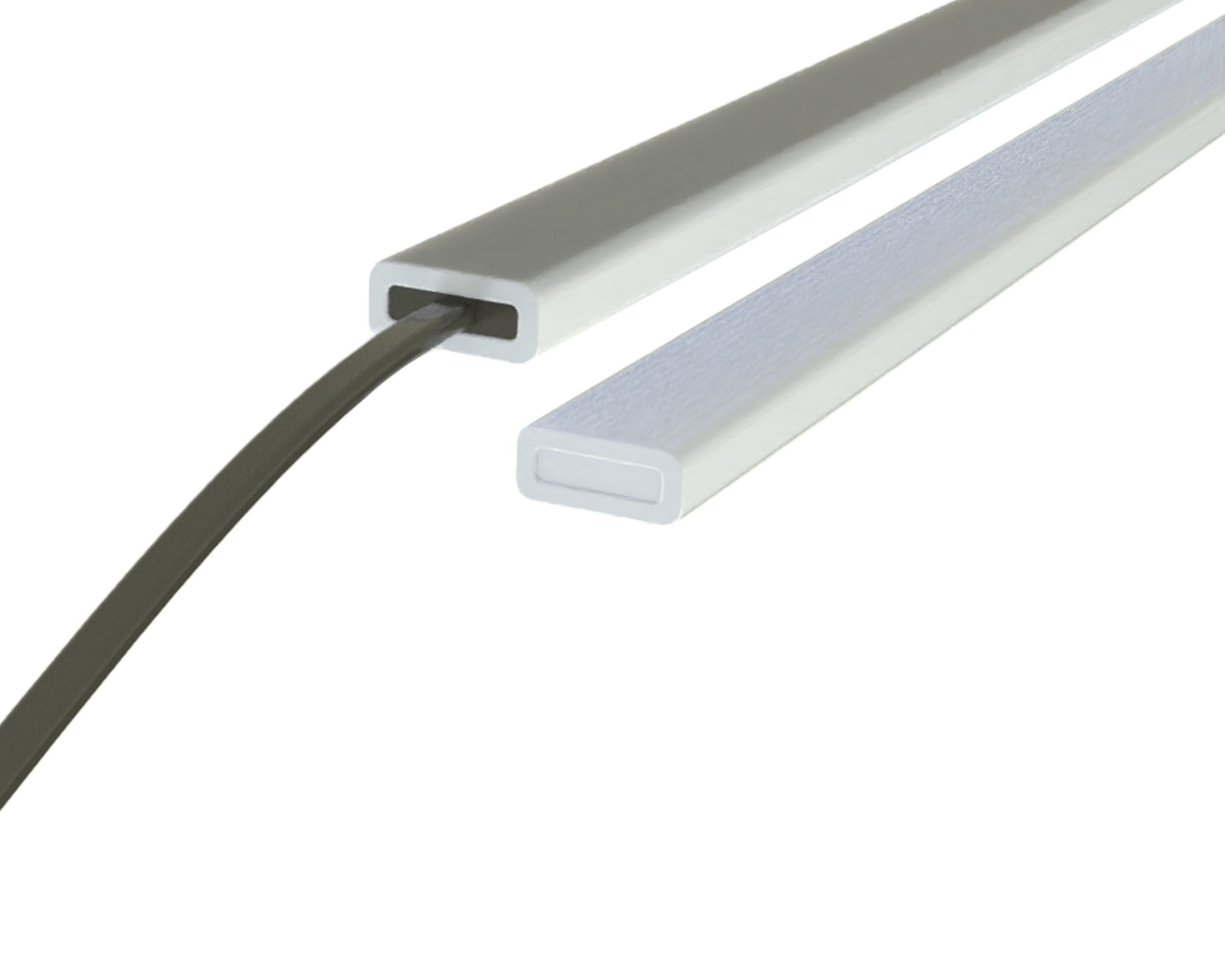

The Strip - Photonix™ Bar
An ultra-low-profile light bar built around our Photonix™ LED array and packaged in a sleek 7mm polycarbonate tube. Available in 270mm and 520mm lengths, Xyrion delivers smooth, glare-free illumination in a compact form factor that fits where other lights cannot be installed.
10V–30V input range
Photonix™ low glare array
Slim 7mm polycarbonate tube
Available in 270 & 520mm lengths
External Photonix™ driver
IP69 rated
Durable, lightweight construction

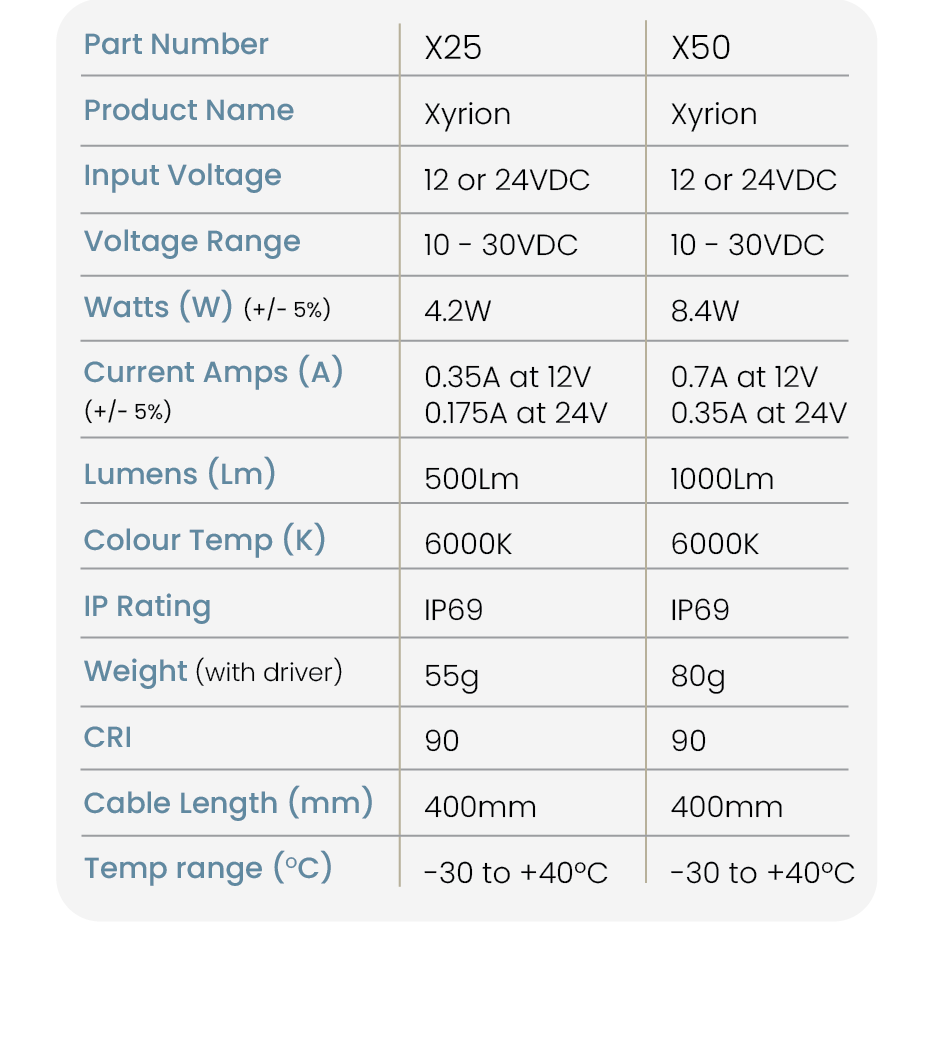

Technical data
10V–30V input range
One of the only multi voltage strip lights available on the market, our multi-voltage dual range driver helps you reduce stock holding.
CRI 90
The Colour Rendering Index (CRI) is a 0-100 scale measuring how accurately an artificial light source reveals the colours of objects compared to natural daylight, with 100 being perfect; aids in improving communication, productivity, job performance and health & safety within the workplace.
No dots, hot spots or blind spots.
Photonix™ low glare bar provides constant uniform illumination combined with reduced intensity (glare).
Slim 7mm polycarbonate tube
Available in two lengths, 270 & 520mm, all housed in a sleek polycarbonate tube.
Xyrion
Dimensions
Length
X25 270mm / X50 = 520mm
Width = 16mm
Depth = 7mm
Important
DO NOT CUT/ REMOVE
Photonix™ driver is vital
for functionality.
Wiring
Cable and Connectors
Superseal connection comes as standard, additional male plug and wires available for flying lead solution. Optional conduit system for enhanced cable protection.

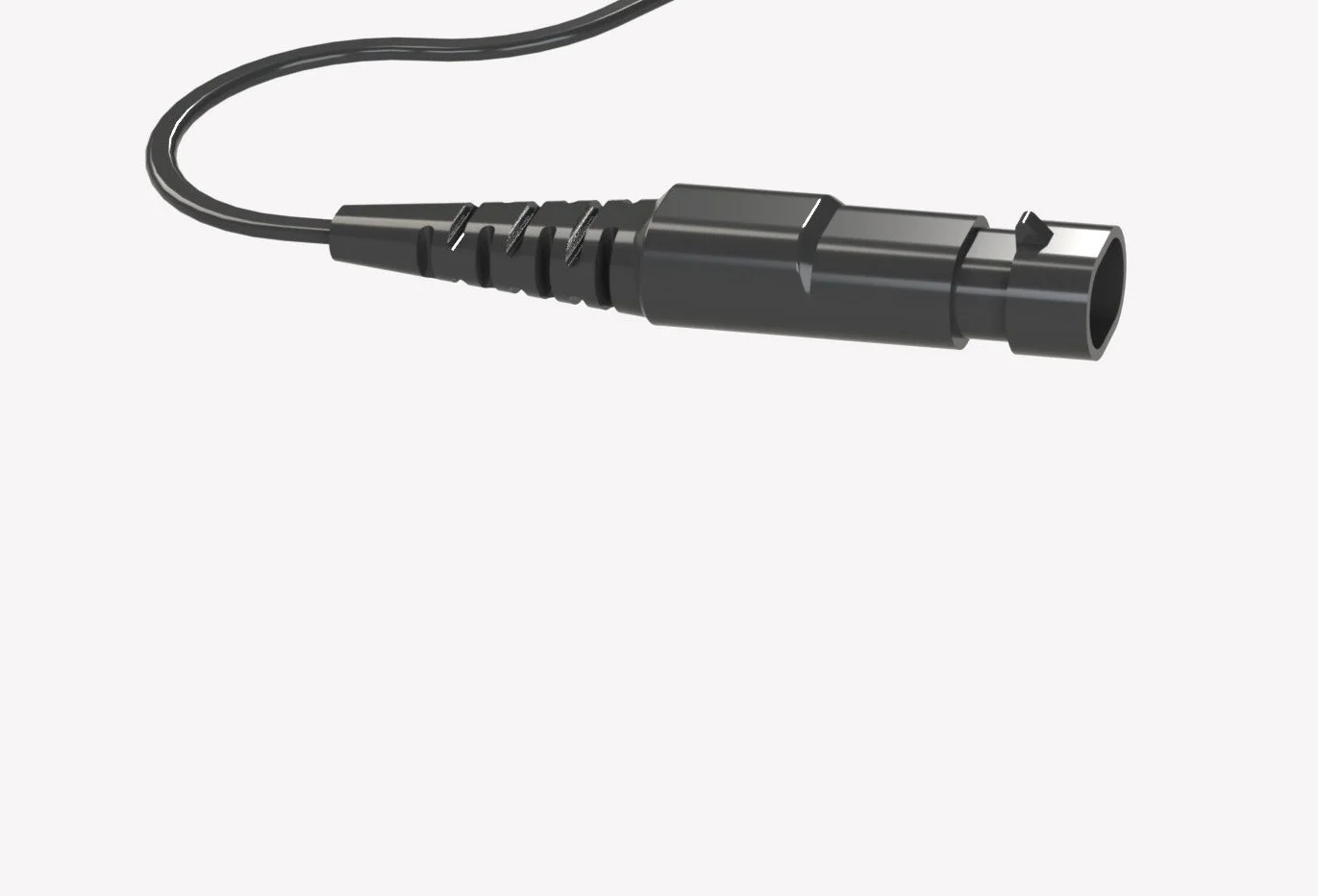

Superseal Driver
(standard connection)

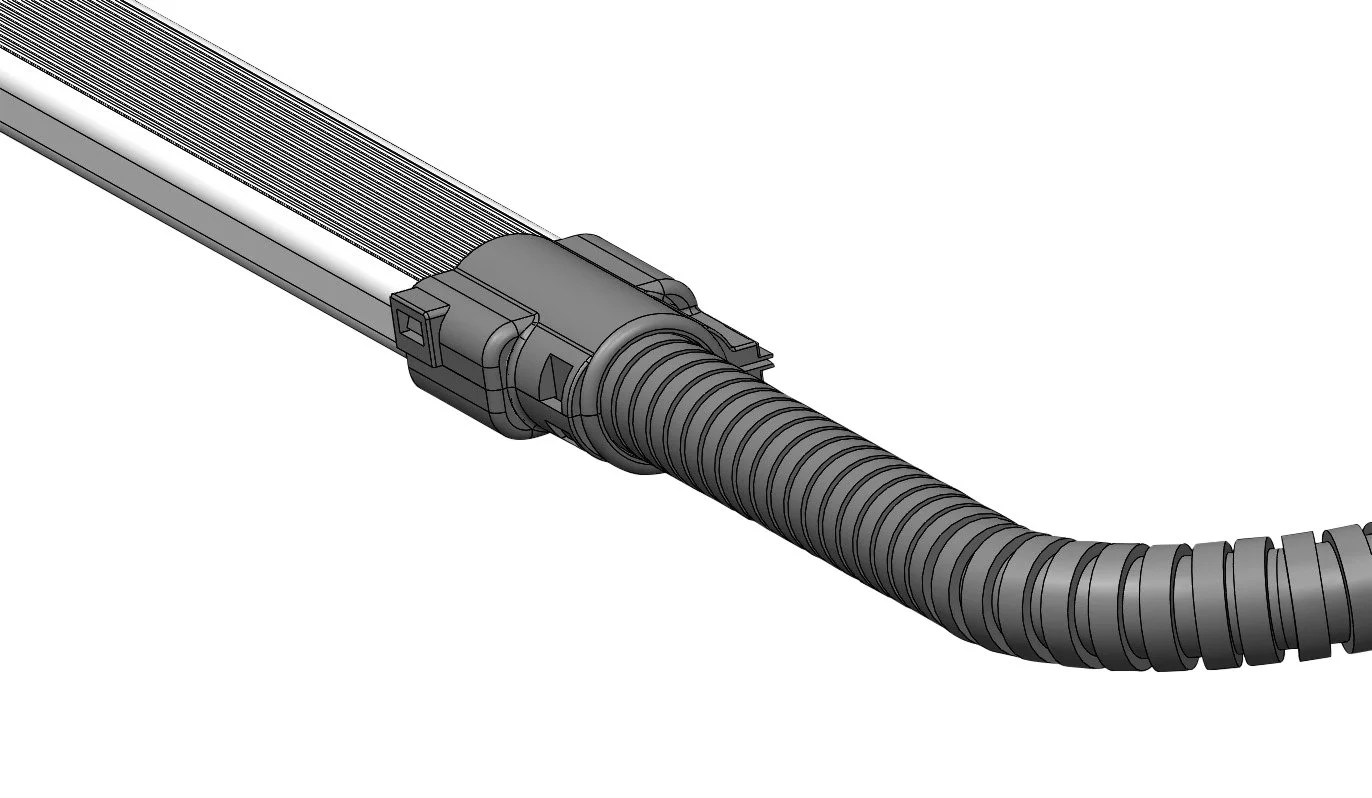

Conduit Cable Protection
Flying Lead Solution
