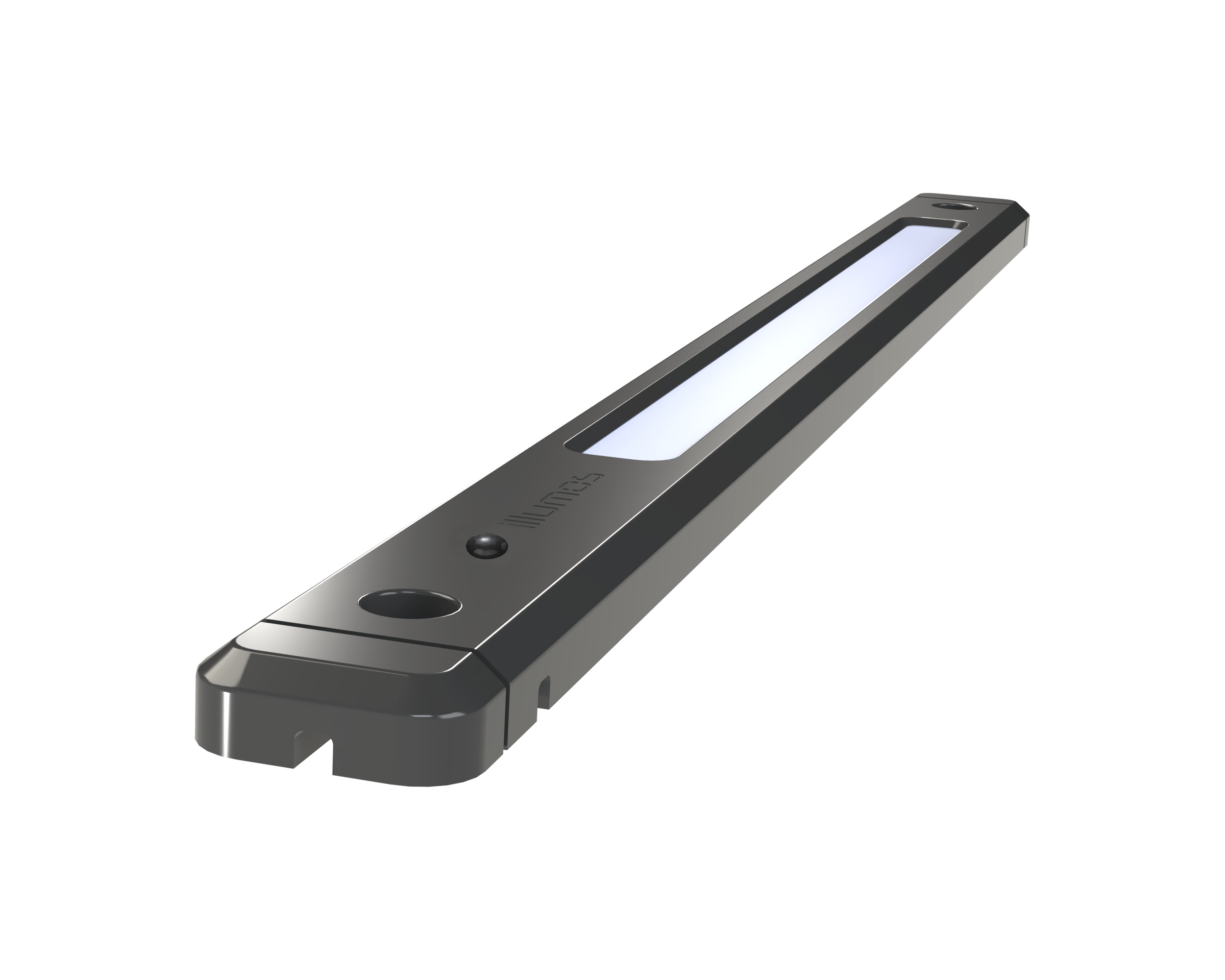

A black and white laser level tool with a long rectangular shape and a built-in LED light, resting on a white surface with a black background.

Kyrod

The Beam - Photonix™ Bar

A strong lighting solution housed in a one-piece aluminium construction for maximum durability. Kyrod combines our Photonix™ LED array with a high-efficiency constant-voltage driver (patent applied), operating across a wide 10–30V range. A Superseal driver is fitted as standard for ease and a quick installation in box vans and curtain-sided trailers.

Download Datasheet pdf

Multi-voltage (10V-30V)

Aluminium construction

Photonix™ low glare array

Optional touch-switch or PIR

Superseal connection

Plug and play conduit system

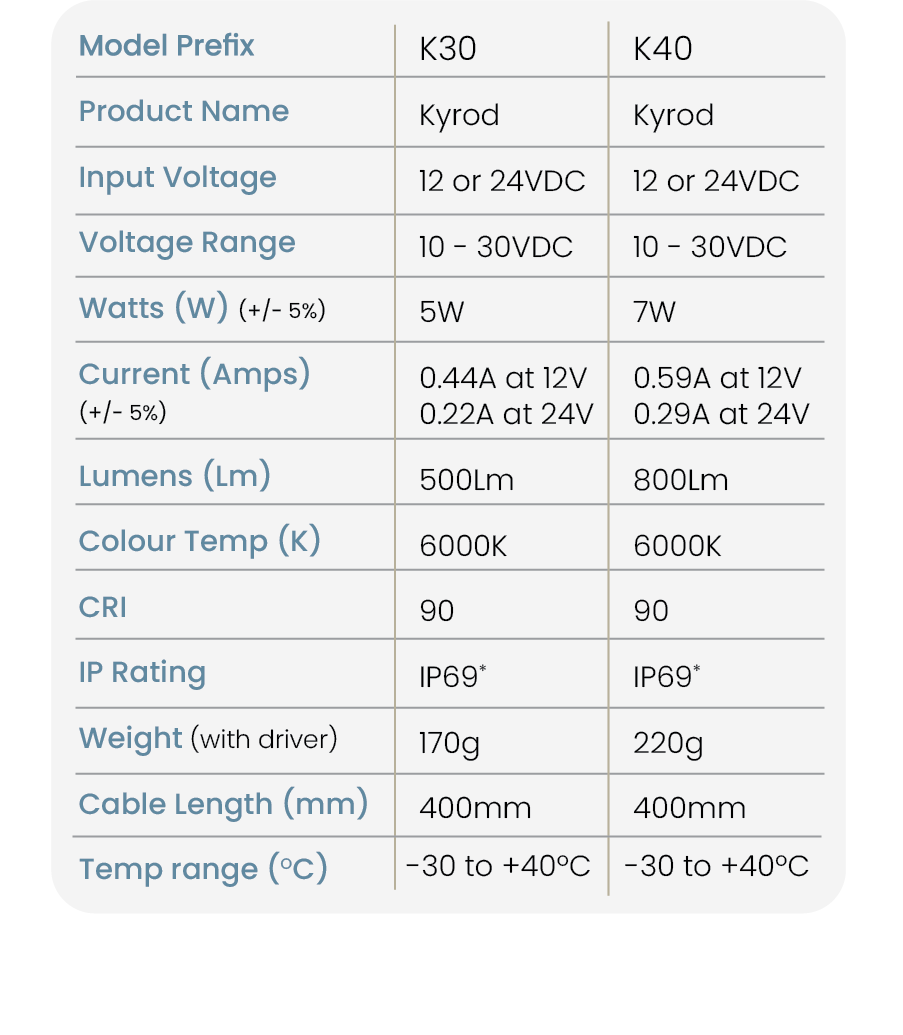

Technical data

*Touch Switch = IP50

Kyrod

Dimensions

Length

K30 290mm / K40 = 400mm

Fixing Screw distance

K30 = 240mm / K40 = 350mm

Width = 30mm

Depth = 30mm

Important

DO NOT CUT/ REMOVE
Photonix™ driver is vital
for functionality.

A black cylindrical electronic connector with a cord attached, isolated on a white background.

Installation guide

Wiring

Diagram of a pin connector with the positive terminal highlighted, indicating the standard configuration.

No dots, hot spots or blind spots

Photonix™ low glare bar provides constant uniform illumination combined wth reduced intensity (glare).

Strong body

Engineered from a single high quality aluminium casting, Kyrod is a light beam which offers strength and durability yet keeping weight to a minimum.

Turn me on

Optional no switch, touch-switch or PIR allows you to choose between fully automatic operation, tactile user interaction, or motion-activated convenience.

Multi-voltage (10V-30V)

No need to buy or stock two items, our multi-voltage dual range driver helps you reduce stock holding.

Colour, Cable and Connectors

Available in black or white finishes. Superseal connection comes as standard, additional male plug and wires available for flying lead solution. Optional conduit system for enhanced cable protection.

A sleek black handheld laser measuring device with a white light panel on top and buttons on the front.

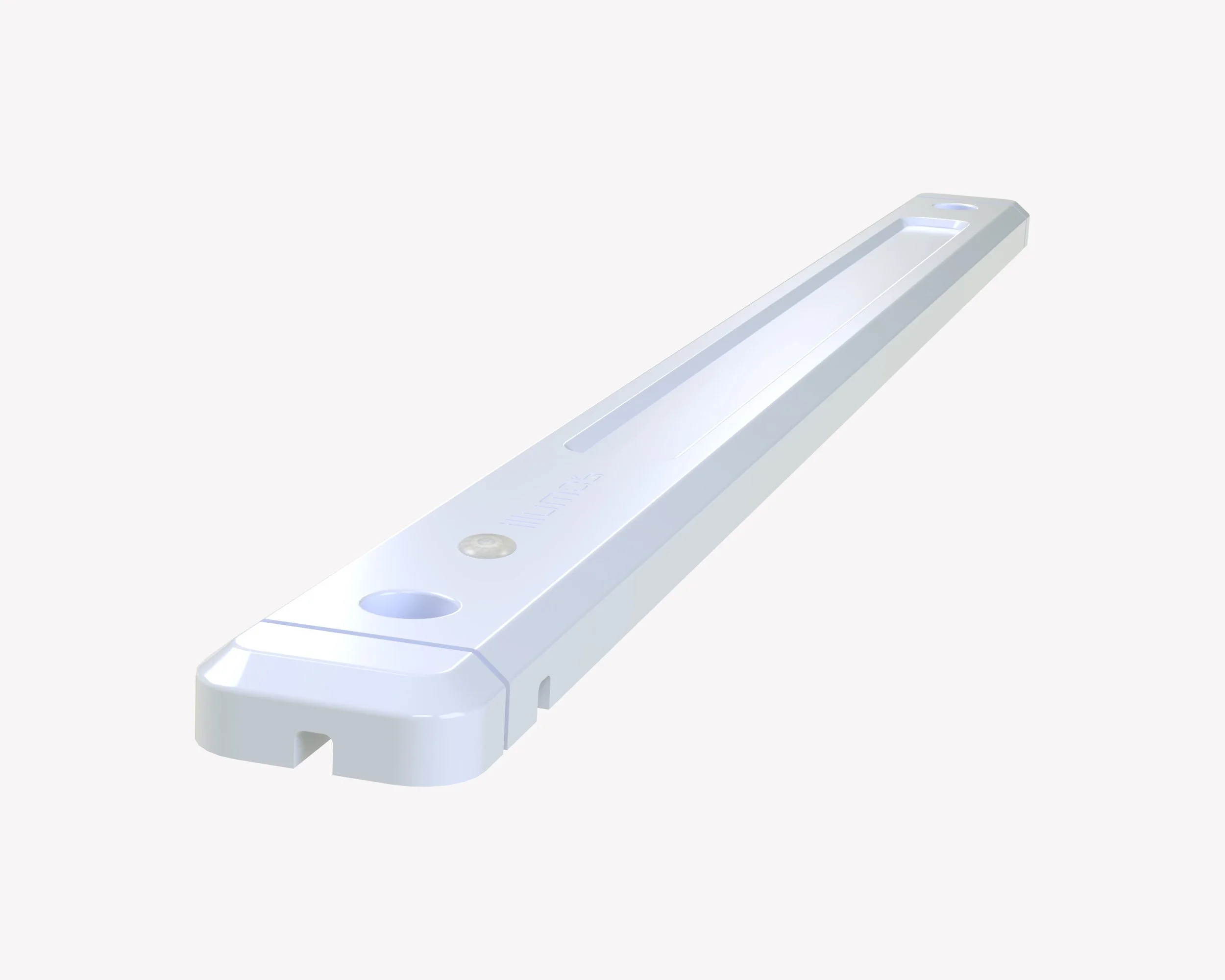

Kyrod, The Beam PIR switch in white, housed in a one-piece aluminium construction for maximum durability. Kyrod combines our Photonix™ LED array with a high-efficiency constant-voltage driver, operating across a wide 10V–30V range.

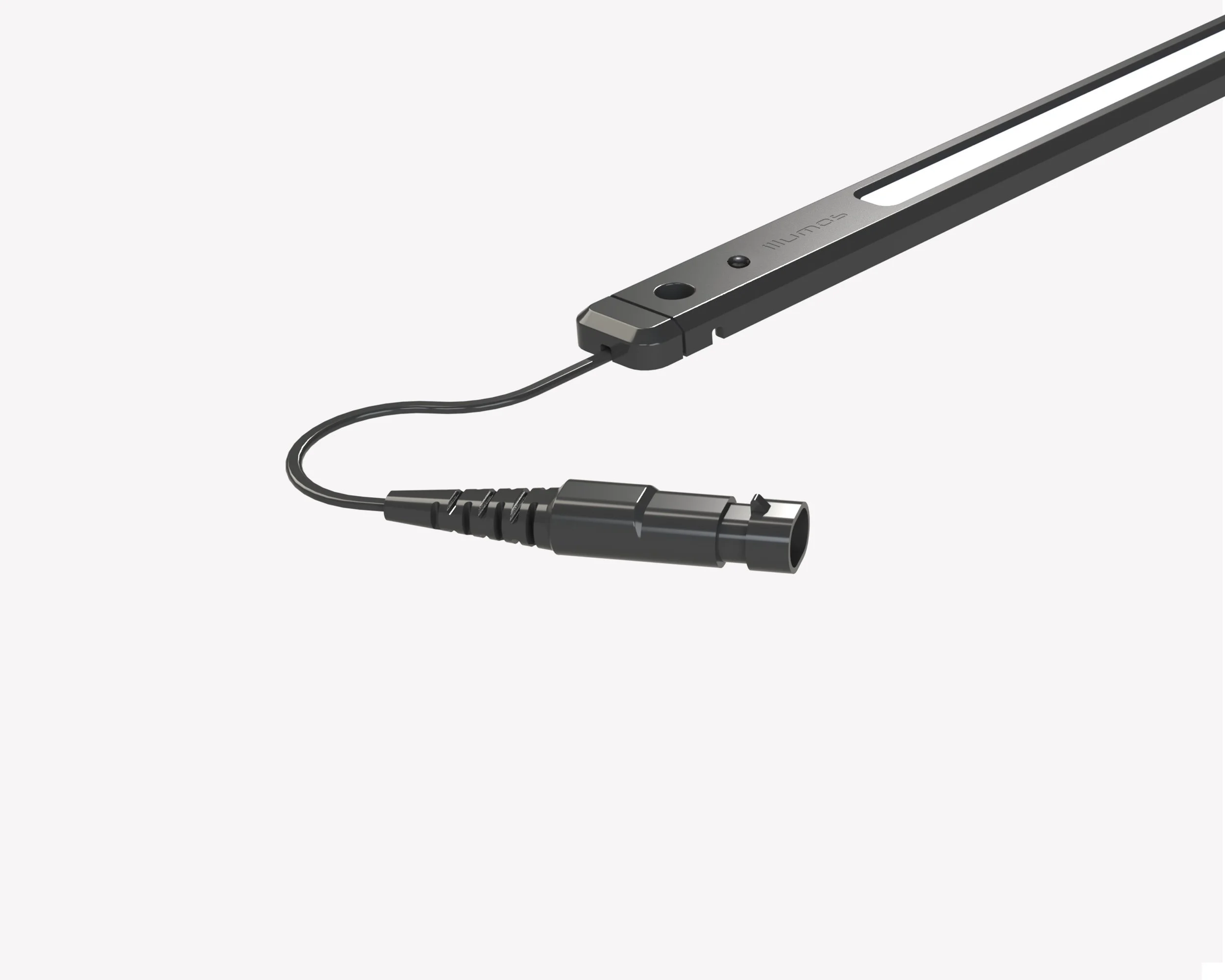

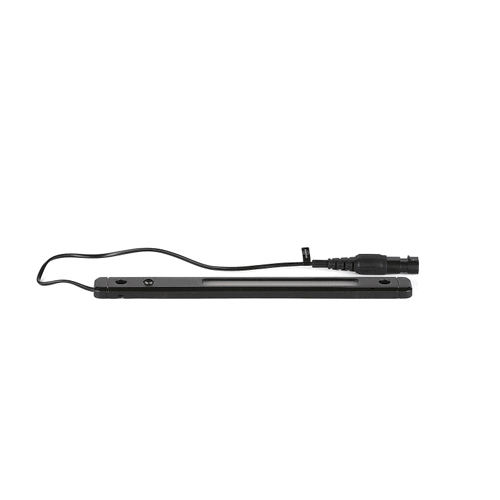

Example of Kyrod with Superseal connector cable option in black made by illumos Ltd.

Superseal Driver

(standard connection)

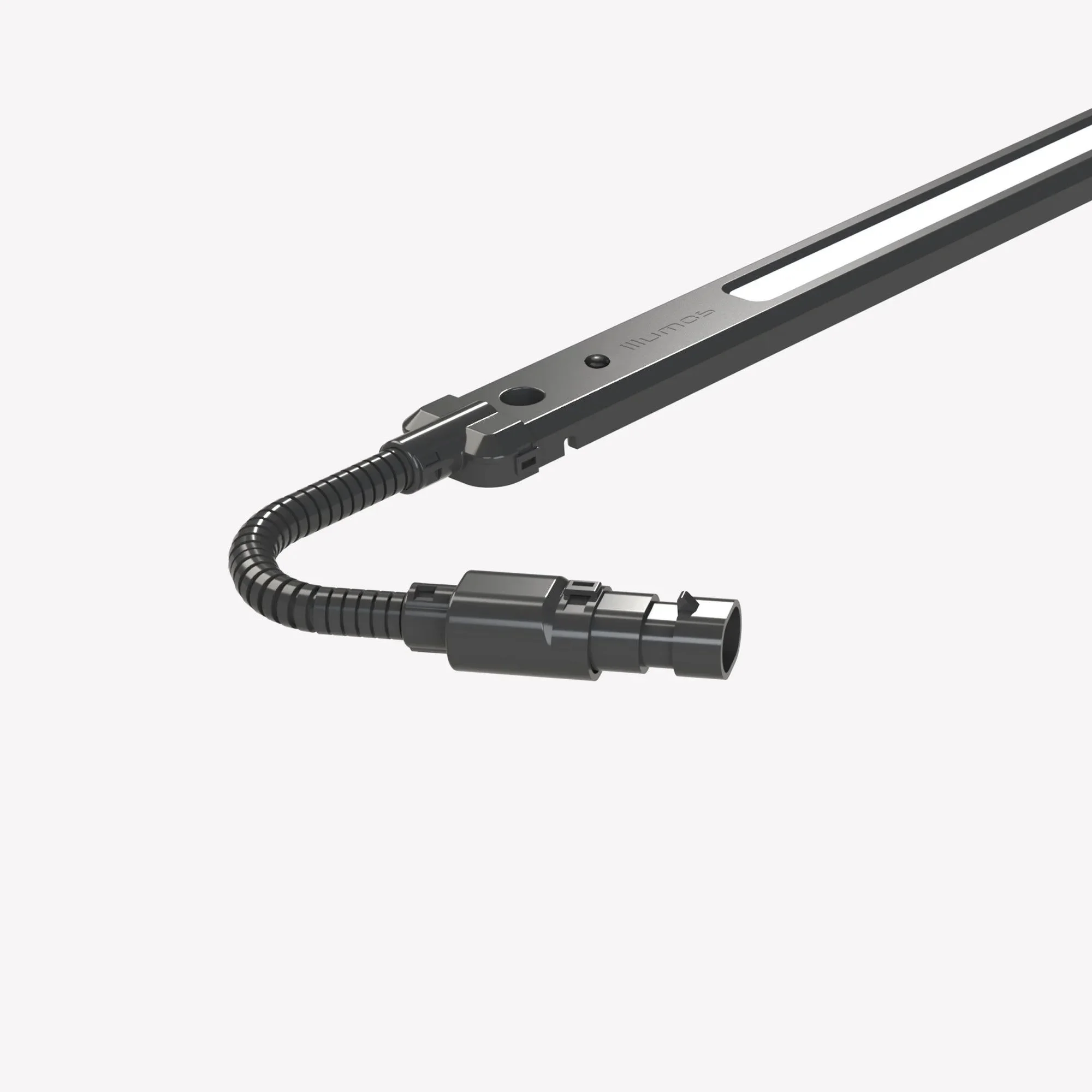

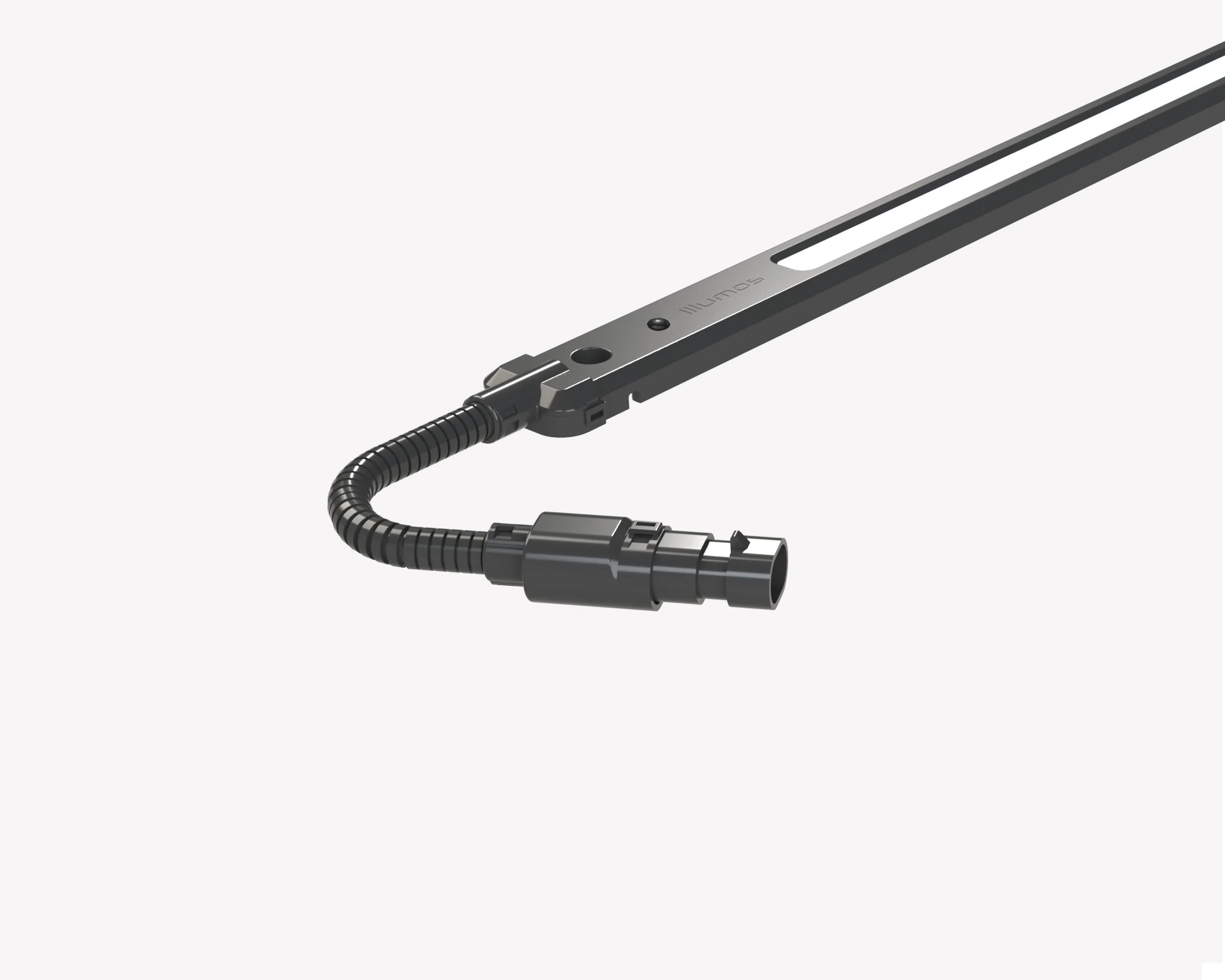

A close-up of black conduit system for the Kyrod with Superseal connector for easy installation in commercial vehicles.

Conduit Cable Protection

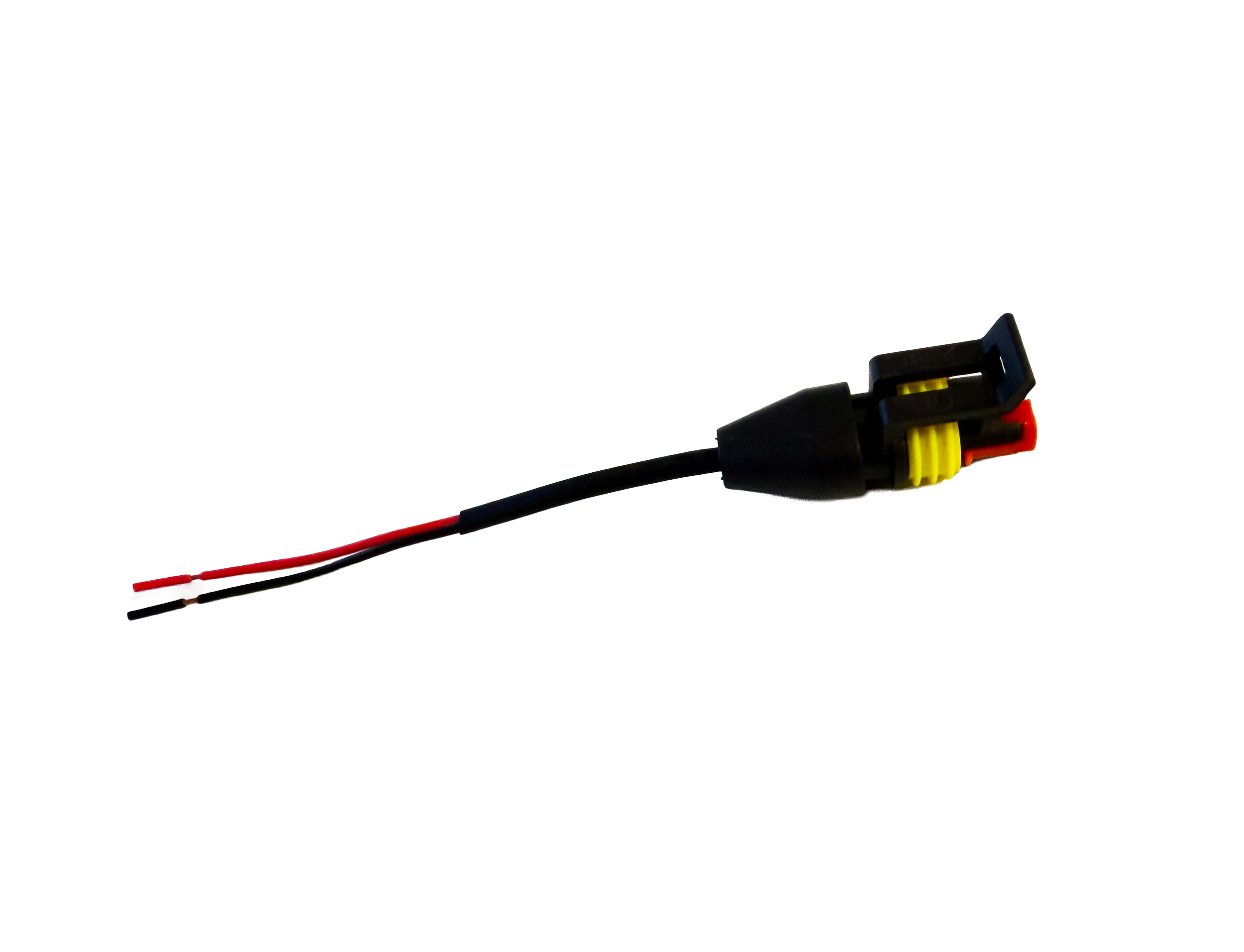

Flying Lead Solution

Switches

Available with no switch, touch switch, and PIR switch options.

Kyrod, The Beam PIR switch. A beam lighting solution housed in a one-piece aluminium construction for maximum durability. Kyrod combines our Photonix™ LED array with a high-efficiency constant-voltage driver , operating across a wide 10V–30V range.

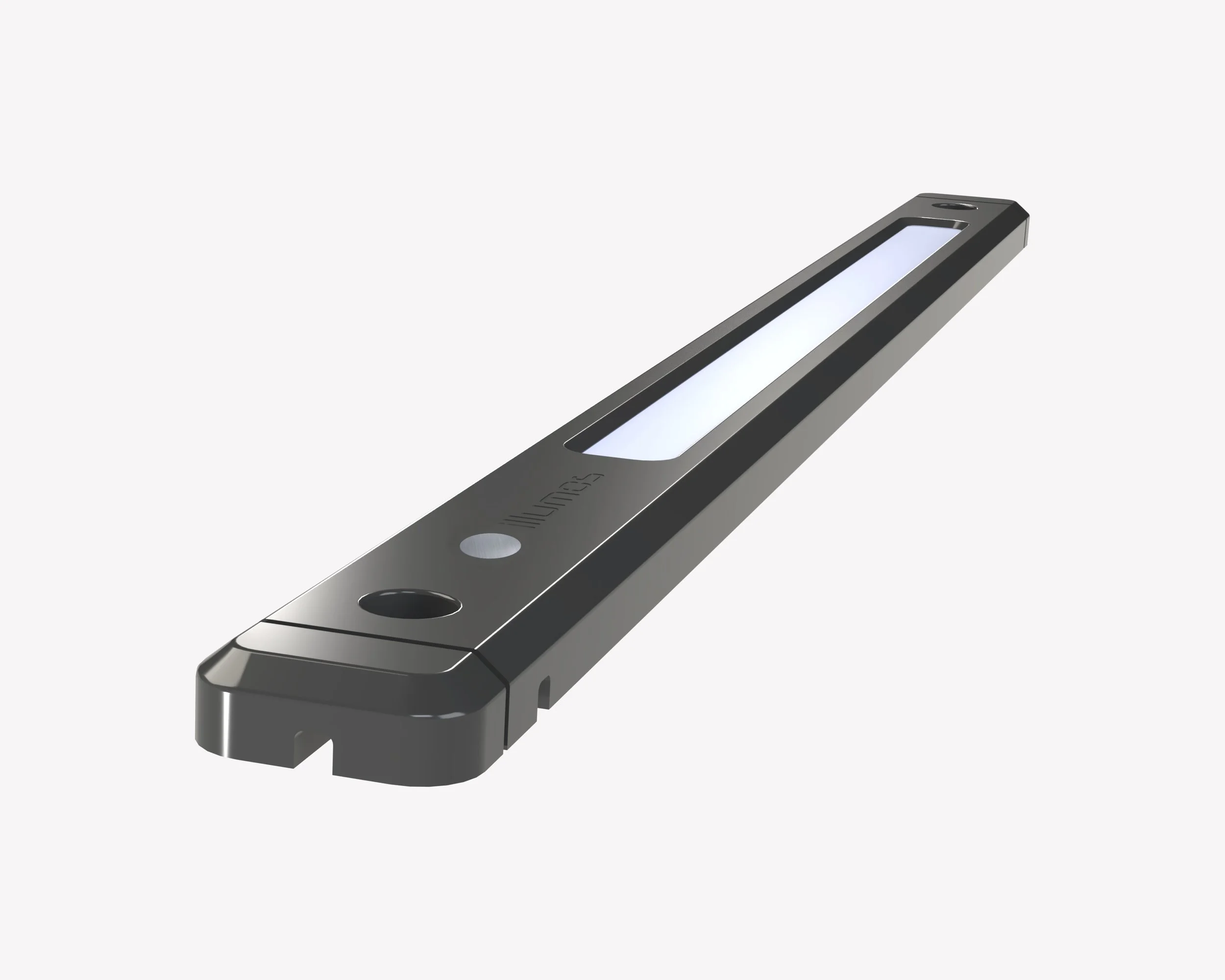

Kyrod, The Beam Touch switch. A beam lighting solution housed in a one-piece aluminium construction for maximum durability. Kyrod combines our Photonix™ LED array with a high-efficiency constant-voltage driver , operating across a wide 10V–30V range.
